Low Profile Slim Type

SBI-HLS/HL/HLL

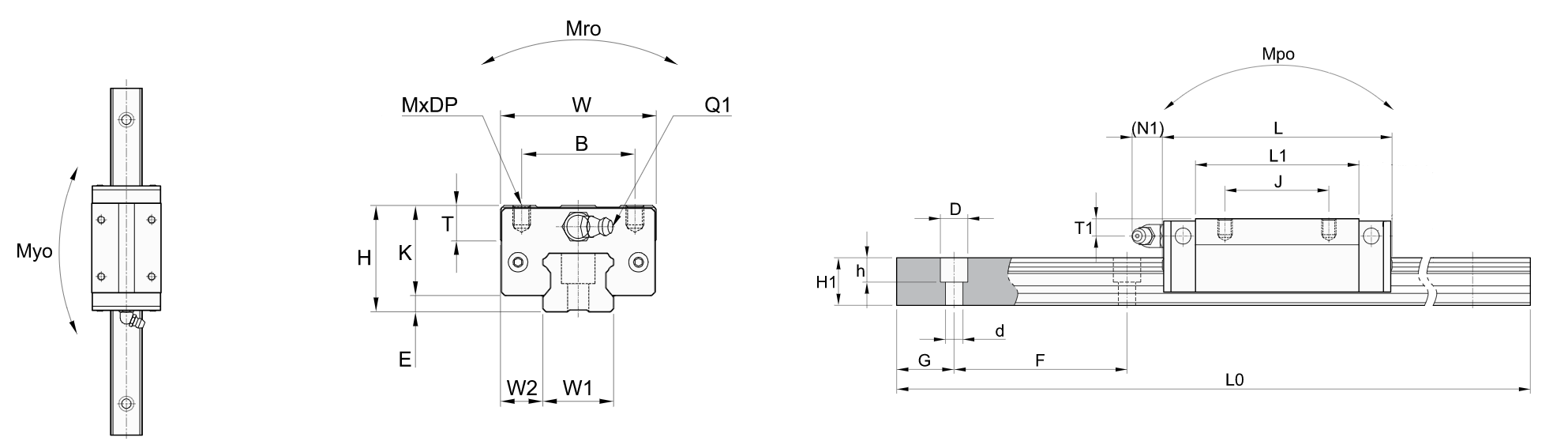

Model	Download	Mounting dimension				Block dimensions													Rail dimension									Basic load rating (kN)		Permissible static moment (kN•m)			Mass
		H	W	L	E	Mounting tap hole				L1	T±1	K	Grease fitting						W1	W2	H1	F	Bolt hole			G	Max length of rail LO	Basic load rating (kN)		Permissible static moment (kN•m)			Mass
		H	W	L	E	B	J	M	DP	L1	T±1	K	T1	N1	T2	N2	Q1	*Q2	W1	W2	H1	F	d	D	h	G	Max length of rail LO	C	Co	Mro	Mpo	Myo	Block (kg)	Rail (kg/m)
SBI15 HLS	FILE	24	34	56.8	3	26	26	M4	4	38.2	6	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	9.5	13	60	4.5	7.5	5.5	20	3000	12.3	18.3	0.13	0.08	0.08	0.15	1.3
SBI15 HL	FILE	24	34	63.8	3	26	26	M4	4	45.2	6	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	9.5	13	60	4.5	7.5	5.5	20	3000	14.1	24.1	0.16	0.17	0.17	0.18	1.3
SBI15 HLL	FILE	24	34	79.4	3	26	34	M4	4	60.8	6	21	4.5	5.5	3.8	3.8	M4x0.7	ø3.5	15	9.5	13	60	4.5	7.5	5.5	20	3000	17.1	31.7	0.21	0.29	0.29	0.24	1.3
SBI25 HLS	FILE	36	48	83	5.5	35	35	M6	6	61	12	30.5	6	12	5	5.5	M6x0.75	ø3.5	23	12.5	20	60	7	11	9	20	4000	28.9	42.8	0.49	0.32	0.32	0.47	3
SBI25 HL	FILE	36	48	92	5.5	35	35	M6	6	70	12	30.5	6	12	5	5.5	M6x0.75	ø3.5	23	12.5	20	60	7	11	9	20	4000	31.5	52.1	0.56	0.56	0.56	0.57	3
SBI25 HLL	FILE	36	48	108	5.5	35	50	M6	6	86	12	30.5	6	12	5	5.5	M6x0.75	ø3.5	23	12.5	20	60	7	11	9	20	4000	36.7	64.4	0.69	0.84	0.84	0.7	3
SBI30 HLS	FILE	42	60	96.8	7	40	40	M8	8	68.8	12	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	16	23	80	9	14	12	20	4000	39.2	57.7	0.8	0.49	0.49	0.8	4.25
SBI30 HL	FILE	42	60	107.6	7	40	40	M8	8	79.6	12	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	16	23	80	9	14	12	20	4000	42.8	65.4	0.85	0.77	0.77	0.95	4.25
SBI30 HLL	FILE	42	60	131.6	7	40	60	M8	8	103.6	12	35	8.5	12	7.8	5	M6x0.75	ø5.7	28	16	23	80	9	14	12	20	4000	51.3	84.7	1.1	1.3	1.3	1.22	4.25
SBI35 HLS	FILE	48	70	108.2	8	50	50	M8	8	78.2	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	18	26	80	9	14	12	20	4000	52	73.3	1.24	0.71	0.71	1.35	6.02
SBI35 HL	FILE	48	70	124.6	7.5	50	50	M8	8	94.6	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	18	26	80	9	14	12	20	4000	59.5	89.1	1.42	1.28	1.28	1.87	6.02
SBI35 HLL	FILE	48	70	152.6	7.5	50	72	M8	8	122.6	15	40.5	8	12	8	6	M6x0.75	ø5.7	34	18	26	80	9	14	12	20	4000	71.3	115.3	1.83	2.12	2.12	2.04	6.02
SBI45 HL	FILE	60	86	142	9	60	60	M10	10	108	17	51	10.5	13.5	9.3	6.5	PT1/8	ø5.7	45	20.5	32	105	14	20	17	22.5	4000	79.2	116.3	2.48	1.9	1.9	2.8	9.77
SBI45 HLL	FILE	60	86	174	9	60	80	M10	10	140	17	51	10.5	13.5	9.3	6.5	PT1/8	ø5.7	45	20.5	32	105	14	20	17	22.5	4000	94.8	150.5	3.21	3.14	3.14	3.29	9.77
SBI55 HL	FILE	70	100	172.4	12	75	75	M12	12	131	21	58	12	13	12	8	PT1/8	ø8.7	53	23.5	38	120	16	23	20	30	4000	127.3	181.8	4.81	2.97	2.97	4.42	13.72
SBI55 HLL	FILE	70	100	211.8	12	75	95	M12	12	170.4	21	58	12	13	12	8	PT1/8	ø8.7	53	23.5	38	120	16	23	20	30	4000	147.9	224.5	5.95	4.78	4.78	5.82	13.72
